Step by step
Installation of SharePoint 2013 on Windows Server 2016 part 3
In my previous blogs, I have shown you how to
setup Active Directory Domain Services on Windows Server 2016 for SharePoint
2013. Now we should be able to setup the Administrator and Service
accounts in Active Directory.
In this blog, I’ll walk you step by step
through the installation of Microsoft SQL Server 2012 on Windows Server 2016 I’ll be creating a default instance of SQL Server that can be used to store
the SharePoint 2013 data. Also, it has all the default databases in it.
SharePoint 2013 Installation Series:
Note : If you wish to see how to install
SharePoint 2016 then please check my step by step guide to installing SharePoint 2016.
Did You know that Microsoft have announced SharePoint 2019?
Steps:
Kindly follow the below mentioned steps to
Install SQL Server 2012 R2
1. Browse the directory of your system where you
have Microsoft SQL Server 2012 Setup files, right click on Setup.exe files
and run as Run as administrator
2. The Splash screen will keep you waiting
until SQL Server installation Center screen appears.
3. The SQL Server installation Center screen
will appear with multiple options as depicted below in the screenshot
4. Click on Installation (2nd Option) from the left hand panel of the screen. Now, you should be
able to see the options for installation.
5. Click on New SQL Server stand-alone
installation or add features to an existing installation link, a
splash screen will keep you waiting until the Microsoft SQL Server 2012
Service Pack 1 setup process is completed.

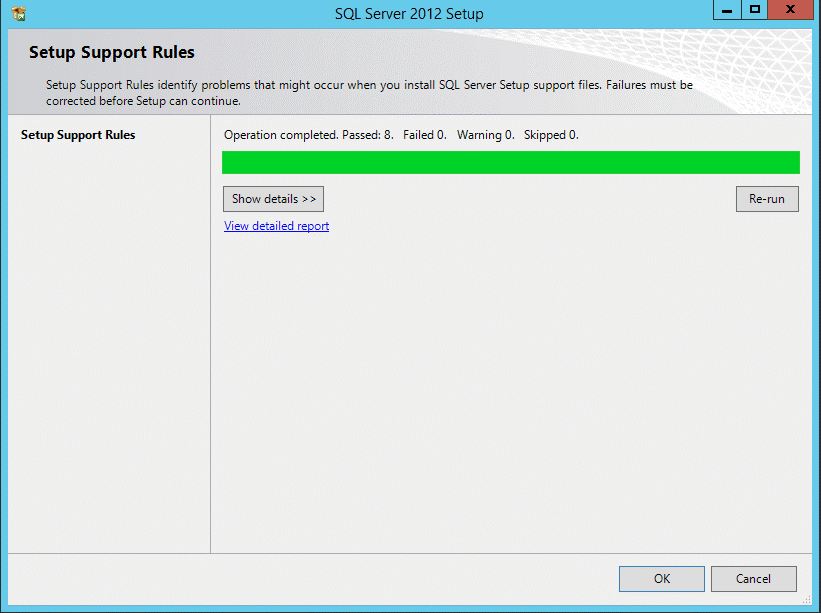

6. On the Setup Support Rules screen,
the Installer checks for any potential issues that have occurred during the
installation.
7. In the following Product Key screen,
you have to provide a valid license Key. If you are installing the free
version, you need to select the Specify a free edition radio
box on the screen. Otherwise enter your license key and
click Next to continue
8. On the License Terms screen,
read the license terms carefully and check the accept the license
terms option if you are happy with them
9. On the Product Updates screen
you will be notified of any hot fixes or updates for SQL Server 2012 that are
relevant to this installation. Click on Next button to
continue
10. On the Install Setup Files screen
the Setup files will be downloaded. You can click on the Install button
to continue
11. Again, the Setup Support Rules screen
appears, it identifies if there have been any installation issues. Click
on Next button to continue
12. On Setup Role screen,
select the SQL Server Feature Installation radio button and
click the NextButton to continue
13. On the following screen, you should be able
to select the Features of SQL Server that you want to have in your
Installation. Below are the main Features that you should select but please
also consider that you may wish to select others based on your requirements
§ Instances Features
1.
Database Engine Services
2.
Full-Text and Semantic
Extractions for Search
3.
Analysis Services
2.Shared Features
§ Shared Features
1.
Reporting Services –
SharePoint
2.
Reporting Services
Add-in for SharePoint Products
3.
SQL Server Data Tools
4.
Management Tools – Basic
5.
Management Tools –
Complete
14. On the Installation Rules screen,
it will show you if the Installation process has had problems and got stuck
somewhere. Click on Next button to continue
15. On the Instance Configuration screen,
you can choose the default SQL Server Instance or create a new Named Instance.
Also, you should be able to change the Instance directory on Windows Server
2012 R2. Click on Next button to continue
16. On the Disk Space Requirements screen,
you will be able to see the details about the required disk space for
installation. If your Windows Server 2012 R2 has enough space to install then
you can click on Next button to continue
17. On the Server Configuration screen,
go to the Service Accounts tab and perform the below mentioned actions
1.
Change the Startup
Type for the SQL Server Agent to Automatic.
2.
Change the Account
Name for the SQL Server Database Engine to NT
AUTHORITY\SYSTEM.
3.
Change the Account
Name for the SQL Server Analysis Services to NT
AUTHORITY\SYSTEM.
4.
Click Next to
move to the next page.
18. In the following screen, go to the Server
configuration tab and select the Mixed Mode (SQL Server authentication
and Windows authentication) option. Also, Add the current logged in
user as System Administrator Account for this SQL Server Instance. Click
on Next button to continue
19. On the Analysis Services
Configuration screen, select the current logged in user as a System
Administrator for Analysis Services. Click on Next button to
continue
20. On the Reporting Services
Configuration screen, select the Install Only radio
button and click on NextButton to continue
21. On the Installation Configuration
Rules screen, you should be able to see the issues that have
occurred during installation.
22. On the Ready to Install screen,
you should be able to all the Feature details that you wanted to install. If
everything looks OK for you. Click on Next button to continue
23. On the Installation Progress screen,
you should be able to see the downloading status of the required Software and
the status of installation. Click on Next button
24. On the Complete screen, you
will get the status of all the features that you have selected to Install. Now,
you can close the screen and restart your Windows Server 2012 R2.

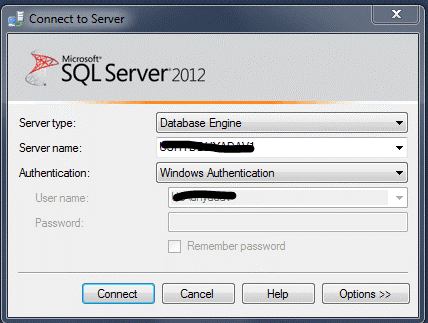

25. After restart your Windows Server 2012 R2,
you should be able to login in to your SQL Server Instance
Once you have finished the installation you need
to configure the Named Pipes protocol for your SQL Server 2012.
To Configure the Named Pipes protocol, browse
the given path using SQL Server Configuration Manager
SQL Server Configuration
Manager >> SQL Server Network Configuration >> Protocols for
MSSQLSERVER.
Locate the Named Piped protocol in right panel
of the screen and Enable it.
